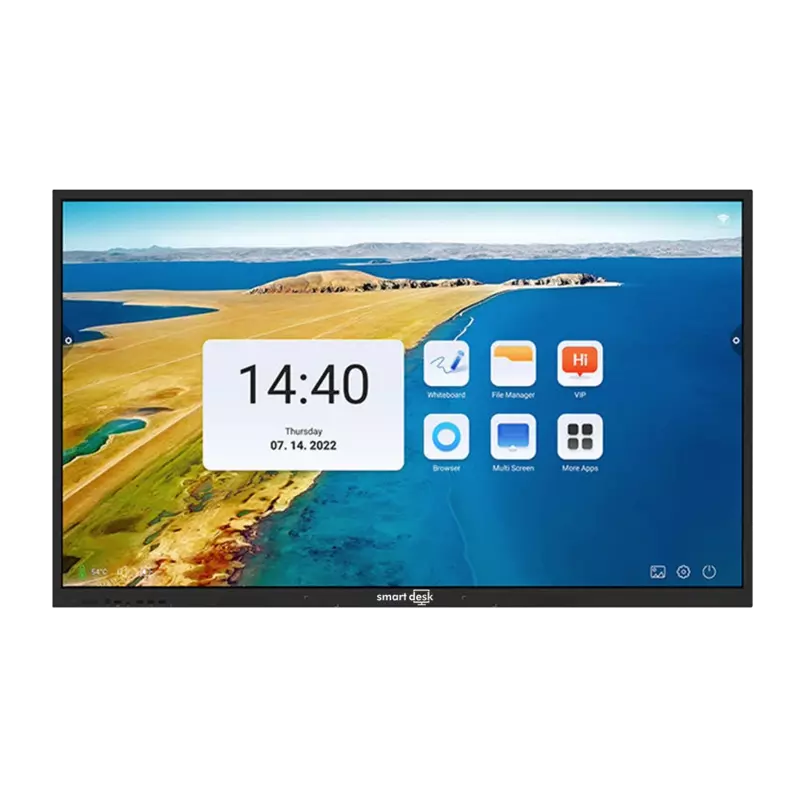

86 inch Interactive Panel 4 GB 128 GB
Product Features
Ultra-Large 4K UHD Display
Massive 86-inch screen with 3840×2160 resolution
Delivers sharp details, vibrant colors, and wide viewing angles for classrooms, boardrooms, and conference halls
Advanced 20-Point Multi-Touch
Highly responsive capacitive/IR touch technology with support for up to 20 simultaneous touch points
Enables smooth writing, drawing, and gesture control with fingers or stylus
Seamless Connectivity
Equipped with HDMI, USB, VGA, LAN, and Type-C ports for flexible device compatibility
Supports OPS computer integration (Windows/Linux) for enhanced performance
Interactive Collaboration Tools
Whiteboarding, annotation, and screen sharing features
Wireless casting for laptops, tablets, and smartphones to enhance group interaction
Built-In Android System
Preloaded with Android OS for easy access to apps, browsing, and media playback
Compatible with Windows and macOS when connected via OPS or external devices
Powerful Audio & Camera Support
Integrated speakers deliver clear, room-filling sound
Supports external cameras and microphones for video conferencing
Durable & Modern Design
Slim bezel, anti-glare glass, and robust build for heavy-duty usage
VESA mount compatible for wall or stand installation
Applications
Ideal for classrooms, training centers, offices, boardrooms, and collaborative spaces
Perfect for presentations, video conferencing, remote learning, and team collaboration
The 86-Inch Interactive Panel is a premium 4K Ultra HD display designed for education, business, and collaboration. Featuring an 86-inch LED panel with 3840×2160 resolution, it delivers sharp details, vibrant colors, and wide viewing angles. The screen is coated with anti-glare glass to ensure clarity even in bright environments.
With 20-point multi-touch infrared/capacitive technology, the panel offers smooth, accurate, and simultaneous interaction for multiple users, making it perfect for classrooms, training sessions, and boardrooms. It comes with a built-in Android operating system for easy access to apps and media, while also supporting Windows, Linux, and macOS via OPS or external devices.
The panel supports Intel OPS computers (i3/i5/i7) with up to 4GB RAM and 128GB storage, providing flexible computing power. Its built-in stereo speakers ensure clear, room-filling audio for presentations and conferences.
Connectivity is versatile with HDMI, VGA, USB 2.0/3.0/Type-C, LAN, and 3.5mm audio ports, making it compatible with a wide range of devices. It also supports wireless screen sharing and casting from Windows, Android, iOS, and Mac devices for seamless collaboration.
Built with a slim bezel and durable design, the 86-inch interactive panel is VESA mount compatible, allowing wall or stand installation. Designed for continuous use, it is ideal for education, corporate meetings, training centers, video conferencing, and collaborative workspaces.
86 inch Interactive Panel 4 GB 128 GB Spacification
- Diagonal Size86 inch Ultra HD 4K
- Touch Type20 Points Infrared Touch
- Resolution4K(3840x2160)
- Color10Bit,16.7M
- Brightness350 nits
- Viewing Angel178
- Response Time6ms
- Fresh Frequency60HZ
- Contrast Ratio3000:1
- ProtectionAG Tempered glass
- OSAndroid 14
- CPUQuad-core ARM Cortex-A55,1.5GHz,Max 1.9GHz
- GPUARM Mali-G52 MP2(2EE)
- RAM4G Byte
- ROM128G Byte
- InterfacesUSB3.0*1,USB2.0*1,HDMI IN*2,RJ45*2,TOUCH*1,MIC IN*1,Earphone*1, AV OUT*1,SPDIF OUT*1,AV IN*1,RS232*1,COAX*1
- Front InterfaceHDMI IN*1,PC-USB*1,USB3.0*1,TOUCH*1,SOURCE*1,MENU*1,VOL *1,VOL+*1,HOME*1,POWER*1,ECO*1
- Max power consumption≤150W
- Standby≤0.5W
- PowerAC 100V–240V, 50/60Hz
